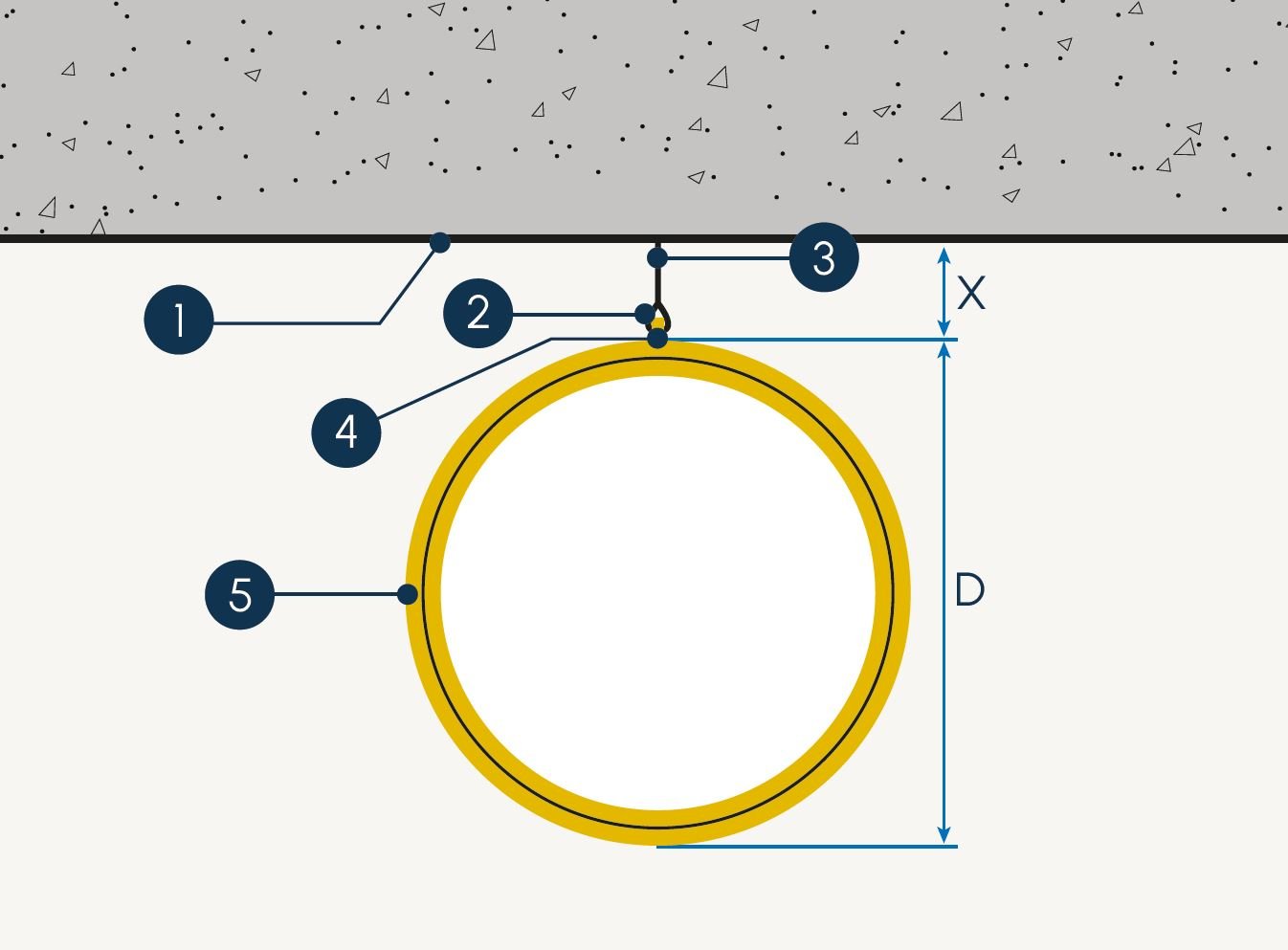

SYSTEMS DESCRIPTIONS:

  1. Tunnel roof
  2. Hooks, wires, turn buckles
  3. Wire
  4. Suspension rib
  5. Ventiflex shaft duct

D = Diameter pipe
X = Clearance tunnel roof - pipes
Y = Distance pipe - wire = 0,21xD

BENEFITS:

  • Easy to combine with dust collectors
  • Can be used for both suction and forced-air ventilation
  • Very high burst pressure
  • Can be used instead of bends

Protan Spiral ducts provide the user with low aerodynamic resistance which allows for significant reduction of the cost of ventilation.

Documentation

Product data sheet

Declaration of Performance
